Expansion joint profiles are installed during concrete floor casting to compensate for the movement of adjacent slabs that are exposed to various internal and external forces. Damage most often appears along slab joints as a result of displacement under load. The system installed between slabs is designed to compensate for their horizontal movements, which occur due to concrete shrinkage and changes in temperature conditions. At the same time, it blocks vertical displacement and relative twisting of adjacent slabs caused by traffic movement, other operational loads, and uneven passive soil pressure.

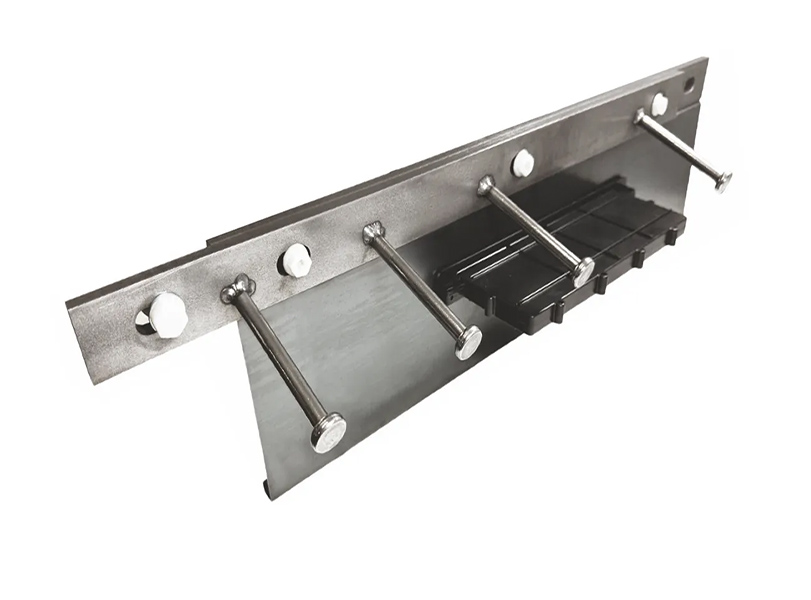

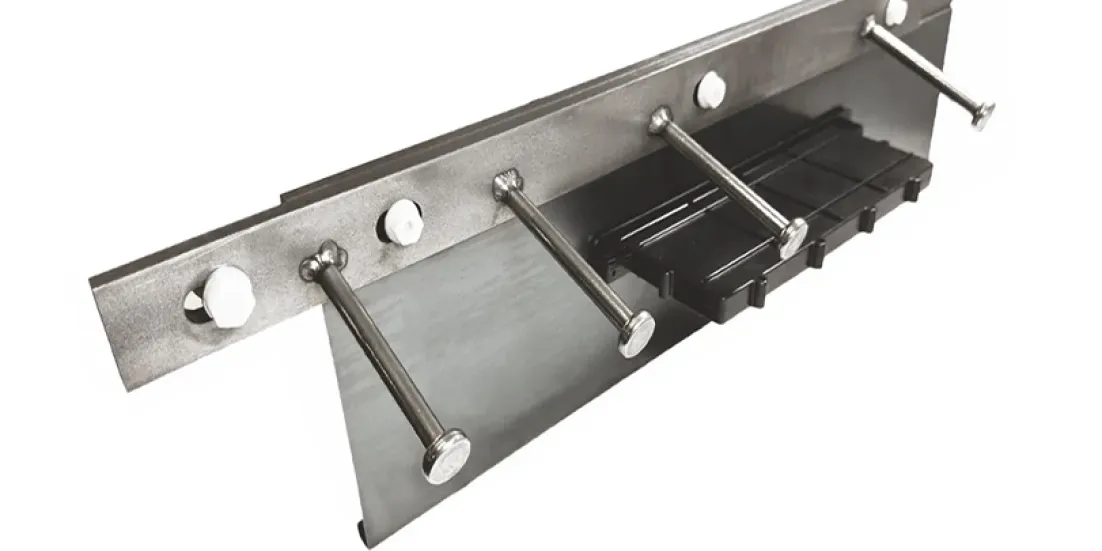

Conecto Dowel profiles compensate for the displacement of adjacent slabs according to the insert plate size:
- Dowel 180x120x8 mm ± 15 mm in parallel and ± 20 mm in longitudinal direction;
- Dowel 180x140x10 mm ± 20 mm in parallel and ± 30 mm in longitudinal direction.
Conecto Dowel profiles ensure uniform load distribution between floor slabs, preventing excessive local pressure. Conecto systems help eliminate uncontrolled cracking, extend floor service life, and improve usability.
The number of profiles must allow the floor to be divided into sections close to a square shape with an area of up to 1000 m², which corresponds to the daily concrete pouring rate. Profiles should be placed no more than 45–45 metres apart.

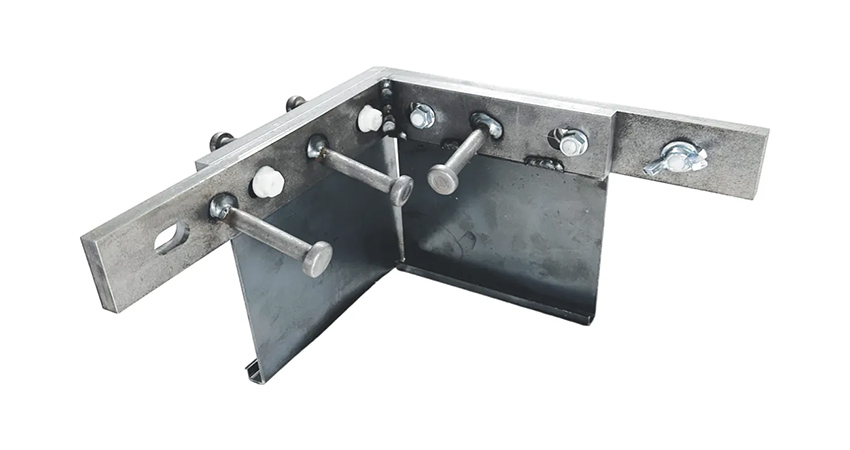

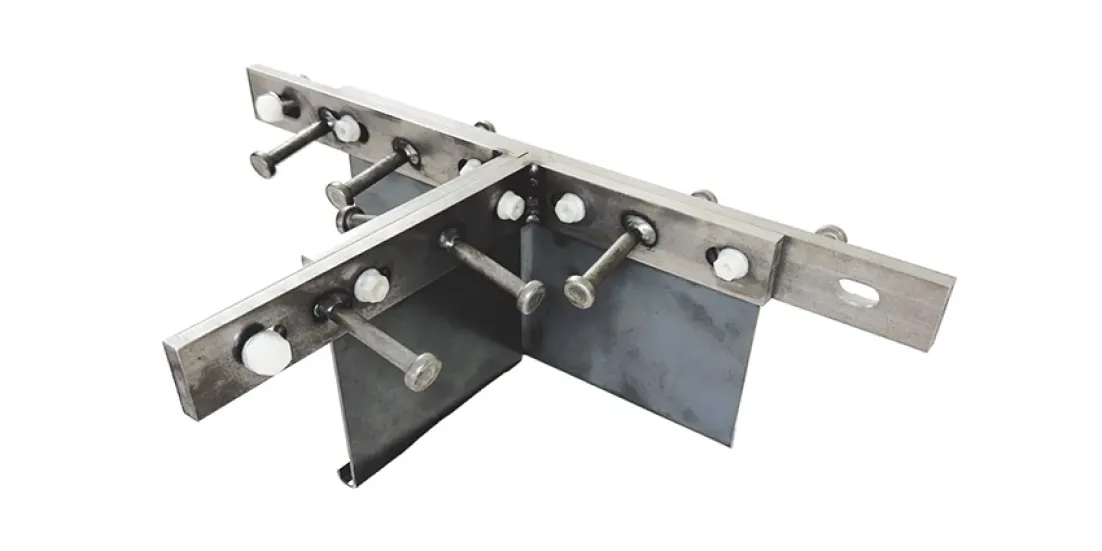

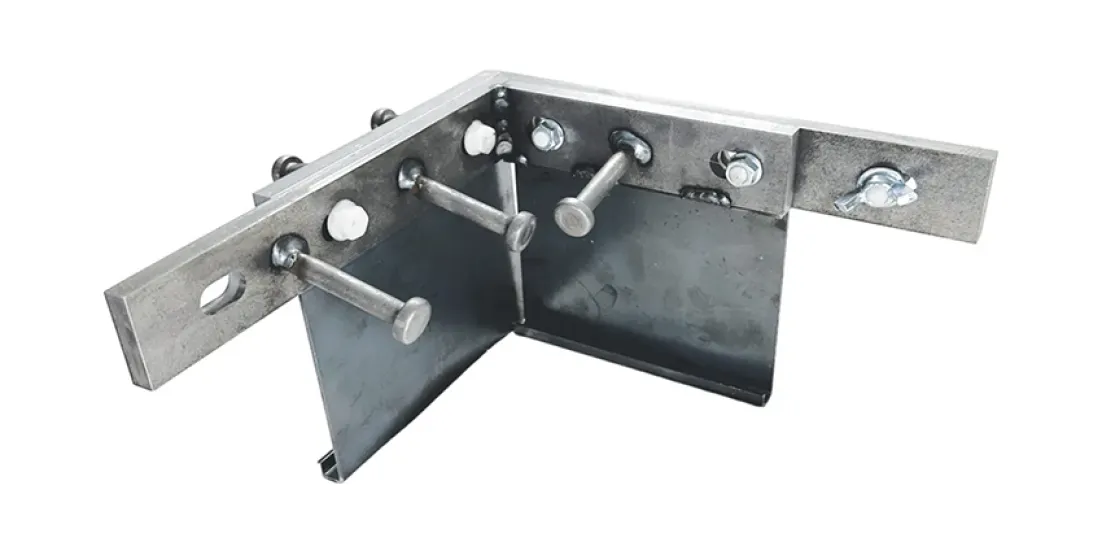

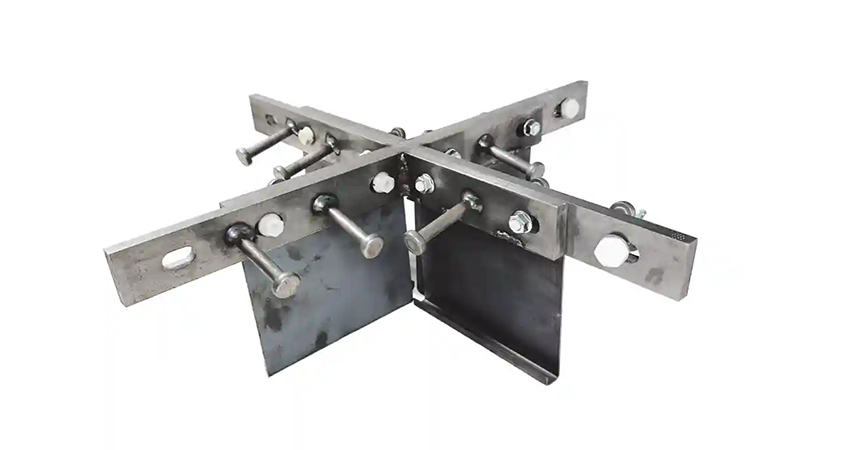

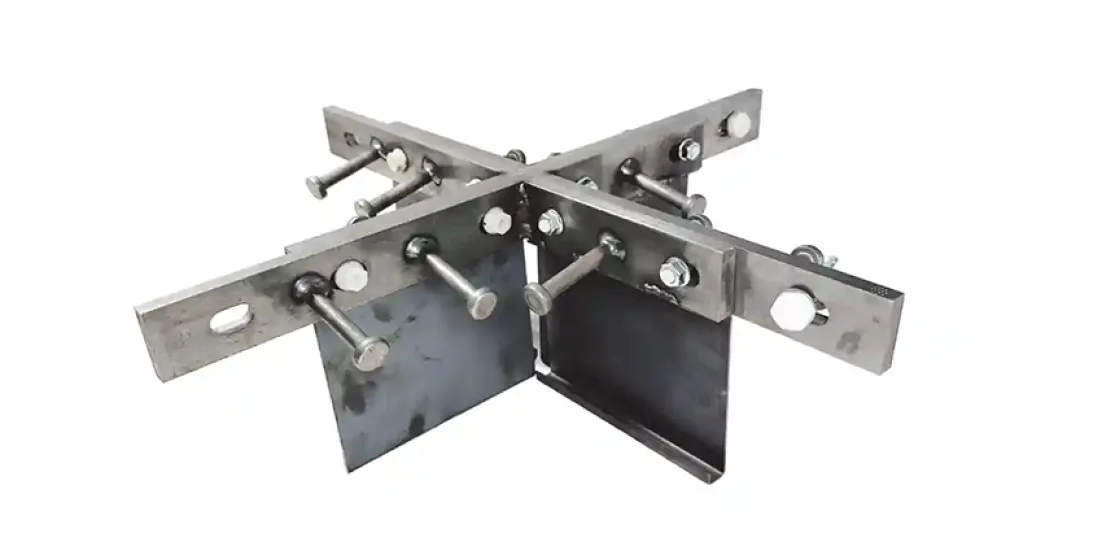

The Conecto Dowel system is supplied pre-assembled and ready for installation. Profiles should be placed at designated expansion joint locations and connected using serrated nuts included in the set.
Conecto Dowel connections ensure proper performance and high durability of the floor under continuous heavy traffic loads.
Scope of use:
- industrial floors
- transport and distribution centres
- production buildings
- industrial warehouses
- airports
- Possibility to use top strips in sizes 6x40 mm or 8x40 mm;
- Possibility to manufacture top strips from galvanized or stainless steel;
- Large area of the steel Dowel insert plate;
- Standard distance between Dowel plates 600 mm (5D version);
- Possibility to use a higher number of Dowel plates on one profile (6D and 7D versions) to increase maximum floor load capacity limits;
- Standard steel grade S355;
- Nylon M10 bolts enabling separation of floor slabs and their subsequent movement;
- Plastic casing made of high-strength ABS plastic.
